Metallic Epoxy Flooring for Commercial Spaces: Design Options and Durability

Facility managers and plant engineers constantly face a tough flooring choice. You need surfaces that withstand heavy machinery and non-stop traffic.

We understand the challenge of finding a floor that meets industrial demands while still impressing visiting clients. Metallic epoxy flooring solves this exact problem.

Our technicians have seen these seamless systems transform vulnerable concrete into a highly resilient asset.

This guide covers everything you need to know about Metallic Epoxy Flooring for Commercial Spaces: Design Options and Durability. The performance data reveals exactly why this coating excels in industrial environments.

What Makes Metallic Epoxy Unique

Standard solid-color coatings serve a basic purpose, but metallic epoxy offers an entirely different level of structural and visual performance. The system uses specific metallic pigment particles, like synthetic mica, suspended in a clear epoxy resin. We apply this liquid mixture and manipulate it as it cures. The metallic particles shift and lock into place at various angles, creating a three-dimensional depth effect.

Our installation process guarantees that every single floor is genuinely one of a kind. Two facilities coated on the same day with identical materials will always feature distinct, flowing patterns.

This visual appeal is backed by serious industrial strength. We regularly test these coatings against extreme weight. Commercial-grade metallic epoxy systems boast a compressive strength of 10,000 to 15,000 PSI.

Our clients appreciate that this is three to five times stronger than standard concrete. This exceptional strength prevents the floor from cracking under heavy forklifts or manufacturing equipment.

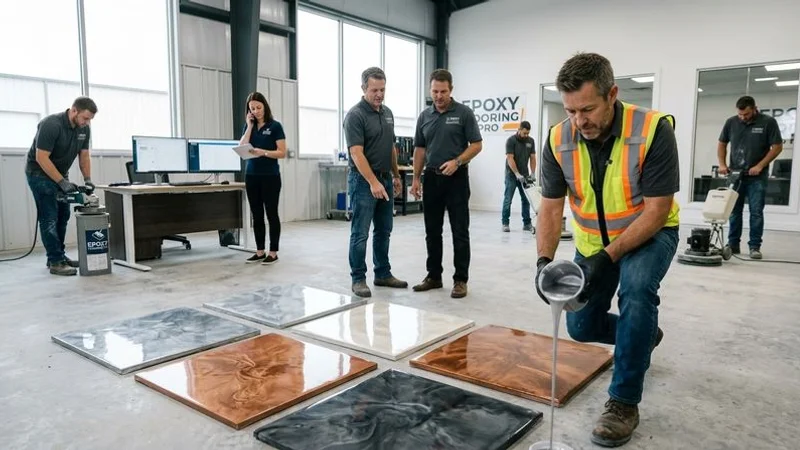

Color Options and Design Possibilities

Choosing the right color impacts both the aesthetics and the lighting efficiency of your facility. Metallic epoxy pigments come in dozens of individual colors that installers blend for custom effects.

We always recommend considering your facility’s lighting temperature before finalizing a color choice. A 4000K LED light will make silver tones pop, while a warmer 3000K light enhances copper shades. Our design team frequently works with the following popular options:

• Silver and Pearl: This is the most popular choice for modern commercial spaces. The highly reflective surface amplifies ambient lighting, which can actually reduce your daily energy costs.
• Charcoal and Gunmetal: These dramatic, dark-toned floors create visual depth and hide tire marks well. The darker shades make powerful statements in upscale retail environments and automotive showrooms.
• Copper and Bronze: Warm metallic tones add richness to hospitality spaces and breweries. They create a welcoming atmosphere while maintaining industrial-grade spill resistance.
• Blue and Teal: Cool-toned metallics provide a striking visual impact for creative studios and modern retail concepts.
• Multi-Color Blends: Combining two or three pigment colors creates incredible visual complexity. Popular combinations include silver with charcoal or pearl with ocean blue.

Ideal Commercial Applications

Different industries require specific performance metrics from their flooring surfaces. We engineer these metallic coatings to solve distinct challenges across various commercial sectors.

Manufacturing and Aerospace

Heavy equipment and harsh chemicals destroy standard floors quickly. We install metallic epoxy in these environments because it withstands Skydrol, aviation fluids, and heavy impacts. A 10,000 PSI compressive strength rating ensures the concrete below remains fully protected from forklift traffic. Our crews frequently apply these floors in assembly areas where both durability and a clean appearance matter.

Food and Beverage Facilities

Sanitation is the top priority for food processing plants and commercial breweries. The seamless, non-porous nature of this flooring actively resists bacterial growth. We strictly follow FDA and USDA compliance standards when applying these systems in food-safe zones. The surface easily repels organic acids, like lactic acid from milk or citric acid, preventing long-term corrosion. Our application methods ensure there are no joints or seams where contaminants can hide.

Retail Showrooms and Boutiques

Automotive dealerships and boutique retail spaces use metallic epoxy to create a premium atmosphere. The glossy finish enhances merchandise presentation and draws customers deeper into the space. We often see facility managers choose lighter metallic shades to maximize light reflectivity. This brightens the showroom floor and reduces the need for excessive overhead lighting. Our installations in retail spaces focus heavily on achieving a flawless, glass-like finish.

Corporate and Hotel Lobbies

High-traffic entrance areas require floors that balance visual impact with practical durability. These entranceways handle thousands of daily foot traffic impressions. We add specific slip-resistant aggregates to these lobby floors to maintain safety during wet weather. A properly textured topcoat helps facilities meet OSHA safety guidelines for walking surfaces. Our goal is to deliver a lustrous appearance that lasts for years without needing constant refinishing.

Salons, Spas, and Clinics

Hair dye, acetone, and treatment chemicals easily wipe clean off the seamless metallic surface. This chemical resistance differentiates the business from competitors struggling with stained vinyl or tile. We recommend this flooring for clinics because it withstands aggressive daily sanitation protocols. The decorative floor elevates the client experience while providing a highly sanitary foundation. Our team ensures the final topcoat creates a chemical barrier that locks out stains.

The Installation Process

Metallic epoxy installation is fundamentally different from standard epoxy application. The artistic element requires experienced installers who understand how metallic pigments behave in liquid resin. We utilize a highly structured process to ensure the floor bonds correctly and looks incredible.

Step 1: Surface Preparation

Proper adhesion requires a perfectly prepped concrete substrate. We use heavy-duty walk-behind planetary grinders equipped with 30-grit metal-bonded diamonds as part of our concrete surface preparation process. This mechanical grinding achieves a concrete surface profile of CSP-2 to CSP-3. Surface flatness is critical because self-leveling resin pools in low spots, creating visible thickness variations. Our preparation phase removes all old sealers, oil stains, and contaminants.

Step 2: Primer Coat and Moisture Testing

Moisture vapor transmission from the concrete slab will ruin an epoxy floor if left unchecked. We always perform calcium chloride moisture tests before applying any liquids. A high-quality moisture vapor barrier primer is then applied to seal the concrete. This primer prevents outgassing, which causes ugly bubbles in the metallic layer. Our technicians ensure the primer creates an optimal bonding surface for the thicker base coat.

Step 3: Metallic Base Coat

The core of the system is a 100% solids epoxy resin. We mix the specific metallic pigments directly into this clear or lightly tinted resin. The material is applied at a thick 12 to 16 mils wet film thickness. Installers spread the resin using notched squeegees to ensure perfectly even distribution across the entire floor. Our application technique guarantees the product has enough volume to flow and self-level properly.

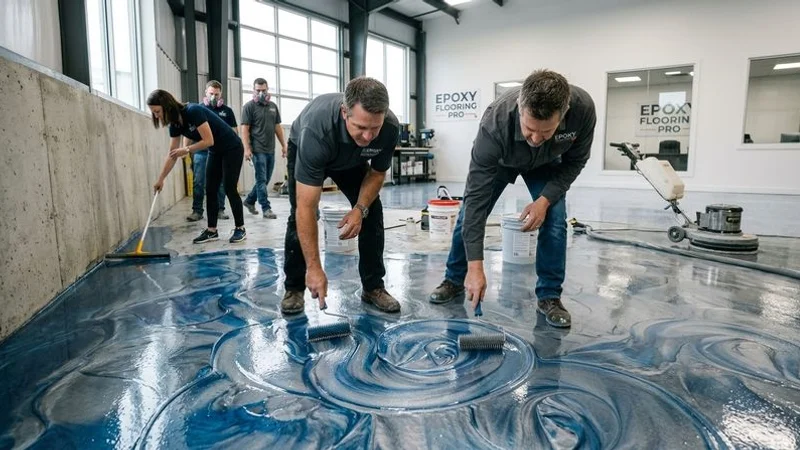

Step 4: Pattern Manipulation

This is the artistic phase that defines the final appearance of the flooring system. We use several specialized techniques to create movement and pattern in the wet metallic layer. Isopropyl alcohol dispersal creates stunning crater-like effects and color separation. Denatured alcohol and directional squeegee work generate organic flow patterns. Our installers might also use a back-rolling method to create subtle waves and ripples.

Step 5: Clear Protective Topcoat

The metallic layer needs serious protection from daily commercial wear and tear. We seal the decorative surface using a high-build polyaspartic topcoat. A polyaspartic topcoat cures incredibly fast, allowing for light foot traffic in just 2 to 4 hours. The floor reaches full cure for vehicle traffic within 24 hours, compared to the 7 days required for traditional epoxy. Our topcoat selection provides the primary wear resistance and UV stability for the entire system.

Metallic Epoxy Flooring for Commercial Spaces: Design Options and Durability Explained

Despite its beautiful decorative appearance, metallic epoxy is a high-performance industrial coating. Facility managers rely on these floors to withstand brutal daily conditions without failing. We engineer these systems to meet strict safety and performance metrics.

• Slip Resistance and OSHA Compliance: Bare epoxy gets slippery when wet. We broadcast silica sand or aluminum oxide grit into the topcoat to increase traction. This achieves the ANSI-recommended Coefficient of Friction (COF) of 0.5 or higher to meet OSHA guidelines.
• Abrasion Resistance: The floor handles heavy foot traffic, rolling pallet jacks, and light equipment without showing wear. Our commercial coatings resist scratches from daily industrial activities.
• Chemical Resistance: The non-porous surface easily repels spills from oil, harsh cleaning chemicals, and solvents. We formulate the topcoat to prevent these substances from penetrating the slab.
• UV Stability: Direct sunlight causes standard aromatic epoxies to turn yellow over time. We apply aliphatic polyaspartic clear coats to ensure the floor maintains its pristine color clarity indefinitely.
• Service Life: You can expect a lifespan of 10 to 15 years in commercial settings with proper maintenance. Our teams provide detailed cleaning guidelines to maximize this longevity.

Cost and Value Analysis

Budgeting for a new commercial floor requires looking at both the initial installation price and the long-term lifecycle value. Recent 2026 industry data shows that professional commercial metallic epoxy typically costs $10.00 to $18.00 per square foot installed in the US.

We base this pricing on the concrete’s condition, the number of metallic layers, and the specific polyaspartic topcoat selected. This puts metallic epoxy squarely between basic solid-color industrial coatings and highly expensive finishes like terrazzo.

When compared to alternatives on both cost and performance, metallic epoxy offers compelling value for decorative commercial applications. We find that facility managers appreciate the lack of grout lines and low maintenance requirements.

Floor System	Cost Per SF (US Avg.)	Maintenance	Lifespan
Metallic epoxy	$10-$18	Low	10-15 years
Luxury vinyl tile	$5-$12	Moderate	5-10 years
Terrazzo	$15-$30	Low	30+ years
Natural stone	$15-$40	High	20+ years
Standard carpet	$3-$8	High	3-7 years

Designing Your Metallic Floor

Every successful flooring project begins with a detailed design consultation and site evaluation. The existing concrete must be thoroughly inspected for moisture issues and structural integrity.

We discuss your space, brand colors, lighting conditions, and aesthetic vision during this initial meeting. Custom sample boards are then created in your preferred color combinations.

Our clients use these physical boards to evaluate the actual metallic effect in their facility’s specific lighting before committing to the full installation. Understanding Metallic Epoxy Flooring for Commercial Spaces: Design Options and Durability ensures you make the best long-term investment.

Contact us to schedule a professional design consultation. We will help you explore the beautiful options that will completely transform your commercial facility.
